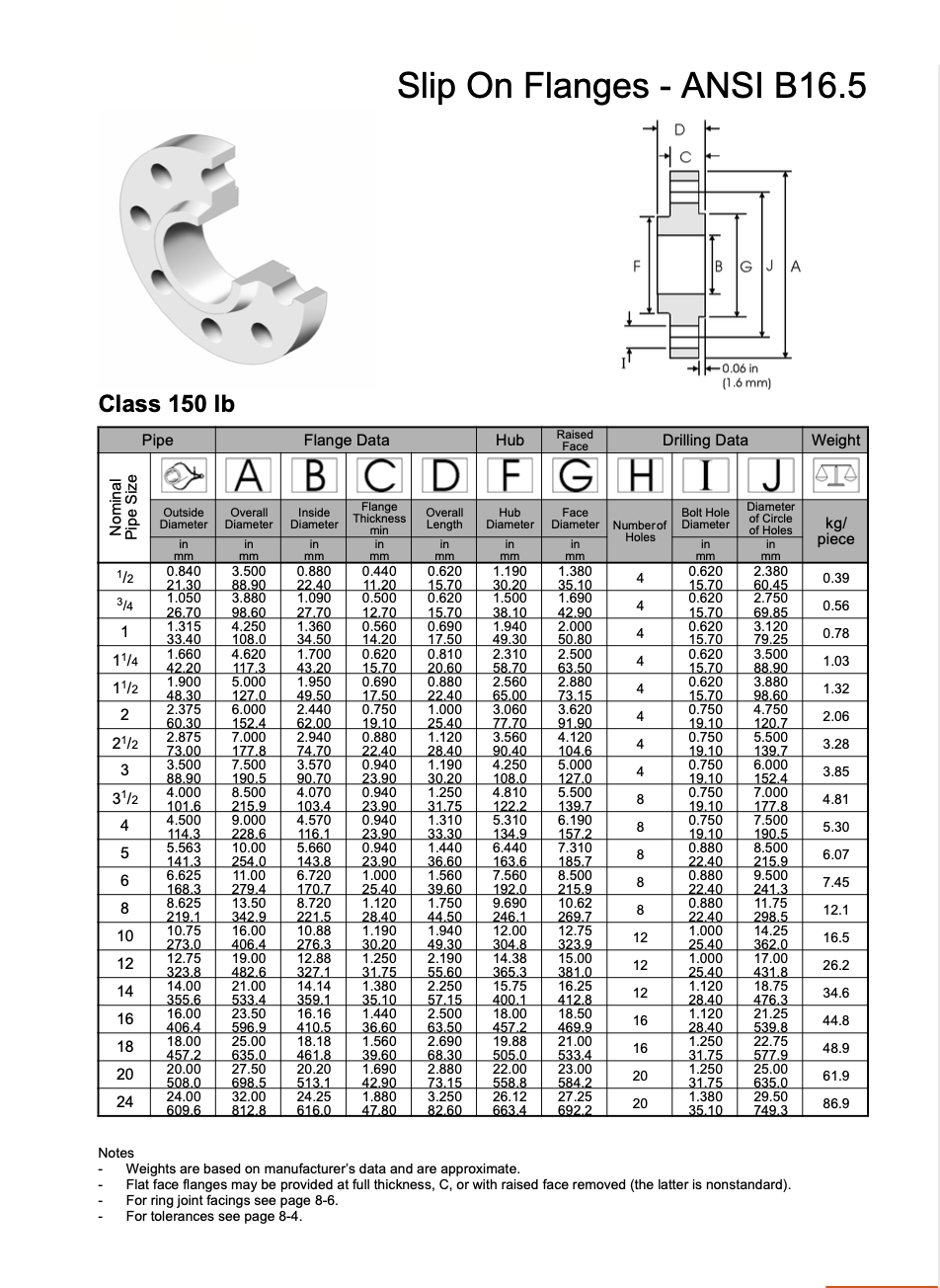

Slip-On Flanges | SO Flange
The Slip-on flange has a low hub because the pipe slips into the flange prior to welding. It is welded both inside and out to provide suffcient strength and prevent leakage.Slip-on flanges are all bored slightly larger than the O.D. of the pipe. They are preferred over welding neck flanges bu many users due to their lower intial cost, but final intallation cost is probably not much less than that of the welding neck flange because of the additional welding involved.
* Size: 1/2” to 48”, DN 12mm to DN 1200mm
* Pressure class: Class 150 to Class 1,500, PN 10 to PN 16.
* Facing: RF / RTJ
* Material:
Cabon steel: A105, A350 LF2, C22.8, S355JR
Stainless steel: A182 F304/F304L/F316/F316L/F321
Alloy steel: F11, F12
* Packing: plywood case and plywood pallet
價格條款:︰ FOB or CIF
付款方式︰ TT/LC
包裝︰ 膠合板箱/免燻蒸木質棧板
質量/安全認證︰ ISO9001/PED/ADWO
